FIG. 1 · Perfect-Fit Kits

HZ-010 · Engineered Solution

Perfect-Fit Kits

Engineered solutions to meet the exact requirements of a fixture, designed to install in the field with the strength and performance of a new OEM fixture.

Send us your fixture Call678-867-9200

Perfect-Fit Kits are engineered solutions that meet the exact requirements of a specific fixture. They are designed to install in the field with the strength and performance of a new OEM fixture.

01How it worksSheet 01 of 07

Perfect-Fit Kits aren't a catalog item. They're a process: we engineer the kit around the fixture you already own, so it installs in the field with the strength and performance of a new OEM fixture.

01

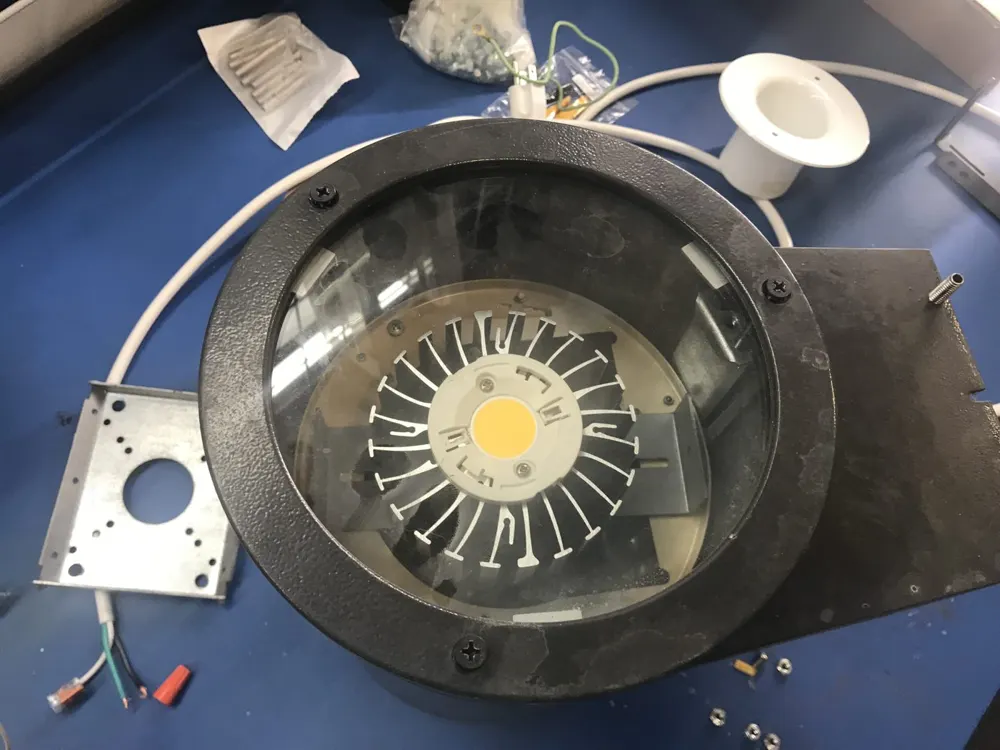

Send us the fixture
Ship us a fixture, or just the insert. Photos of the fixture, nameplate and inside of the housing get us started.
02

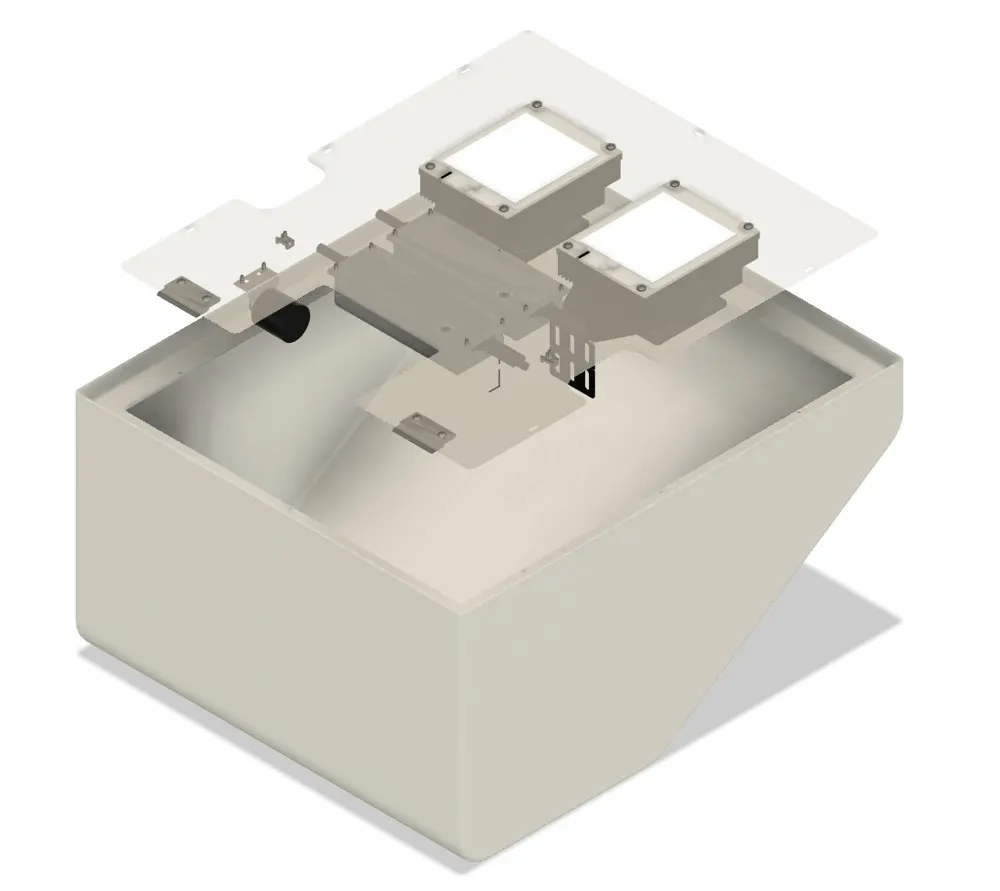

We design the kit in CAD
Our engineers model the existing fixture and design the kit around it: mounting to the existing bolt pattern, quick-connects to the existing plugs, LEDs placed where the original lamp was.
03

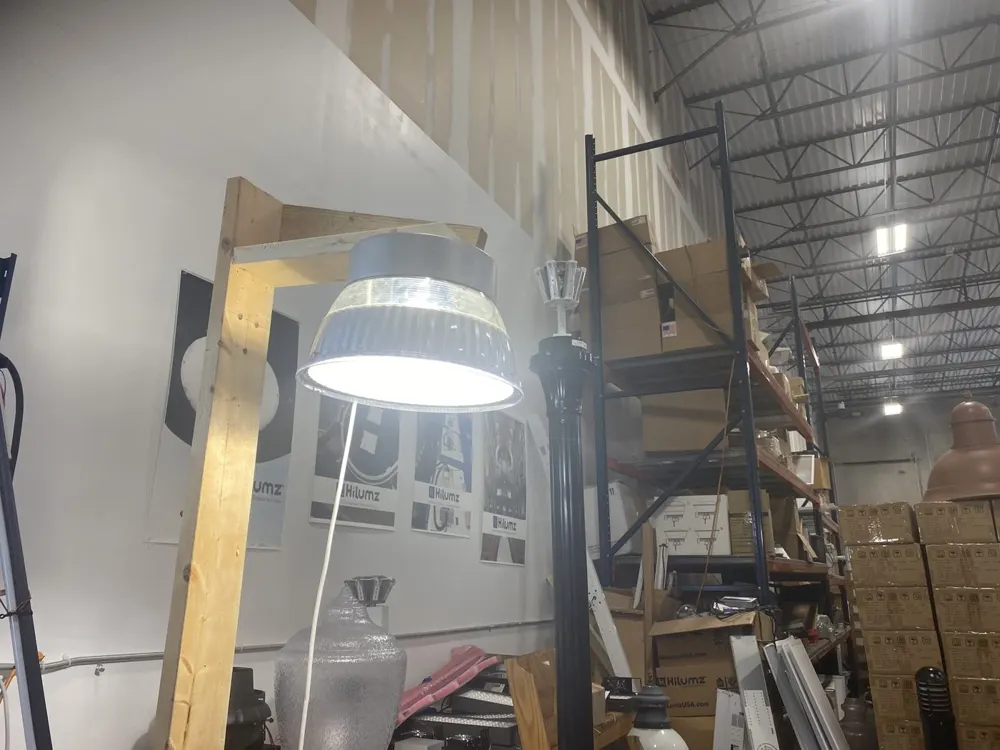

Prototype to match the light
We build a prototype in our Georgia shop and tune it to match the original light distribution.
04

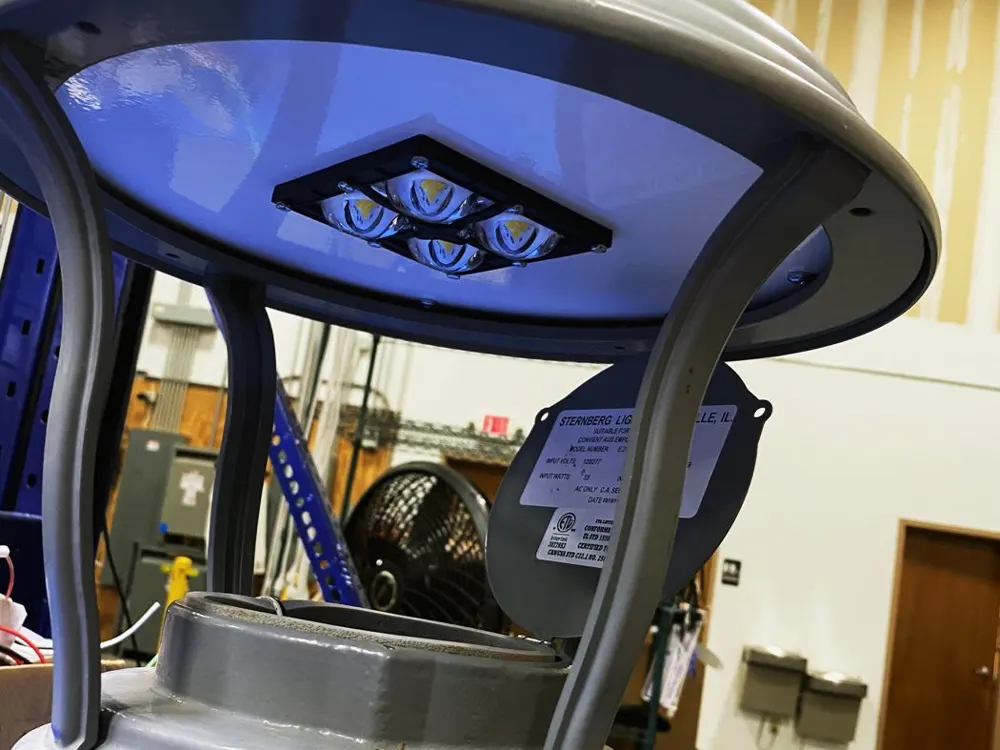

Trial install and approval
We send the prototype back for a trial install, often with an install video made for your fixture. You approve it.

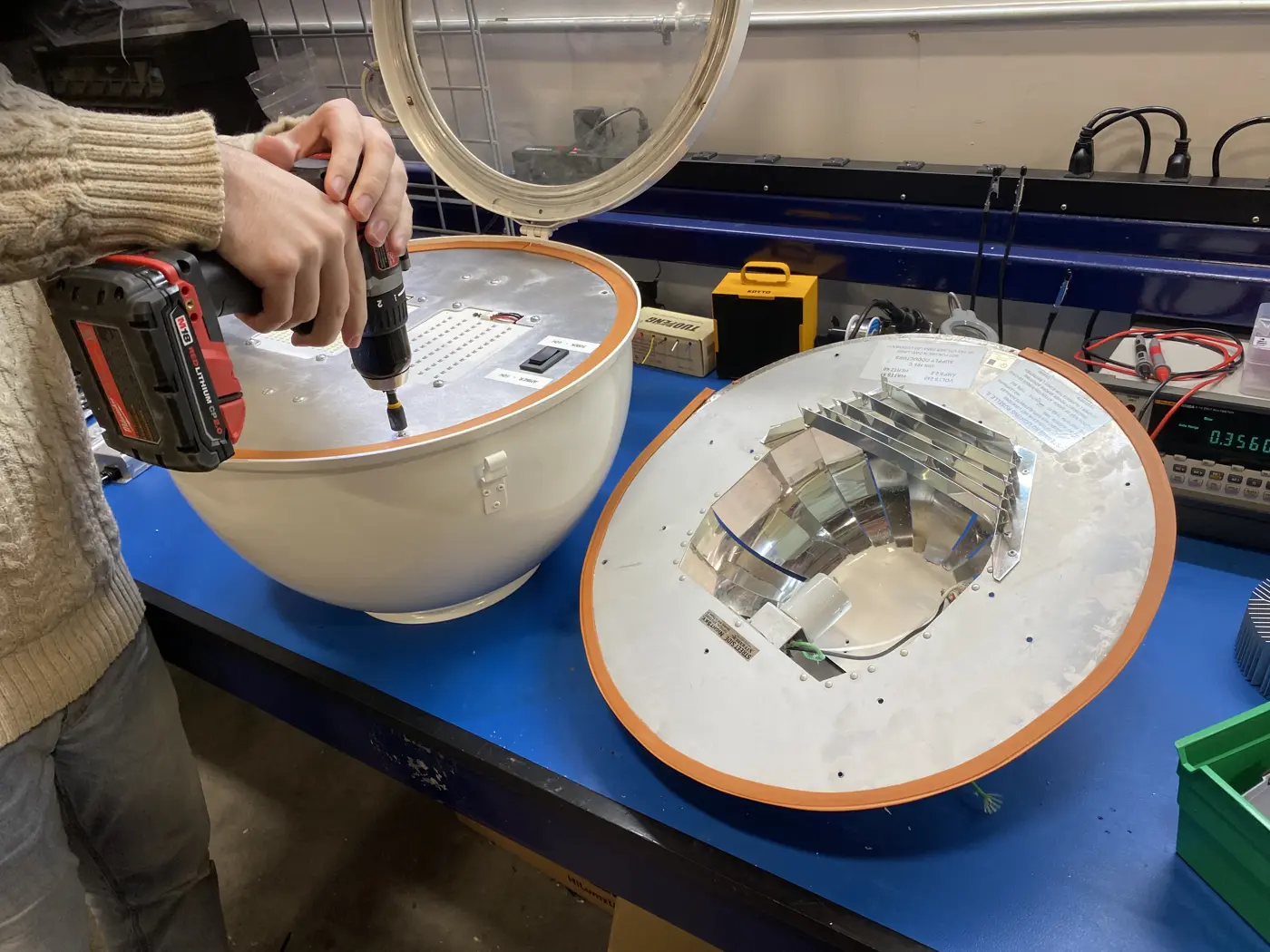

05
Production
We build the production run in Alpharetta, GA. Most lead times are about two weeks, with no minimum order.

What to send us

The fixture, or just the insert
Or photos of the fixture, nameplate and inside of the housing
Existing lamp type and wattage
Quantity and input voltage
Controls: photocell, 0-10V, DALI or wireless

Already LED? We also build replacement systems for LED fixtures. When an LED fixture's light engine or driver fails, replace the light system, not the fixture.

Start with a photo.

Email photos of your fixture and nameplate, or call engineering.

Call 678-867-9200 sales@hilumzusa.com

02Custom kit case studiesSheet 02 of 07

Kits engineered for specific fixtures: tunnels, roadways, airports, campuses, streetscapes and building exteriors.

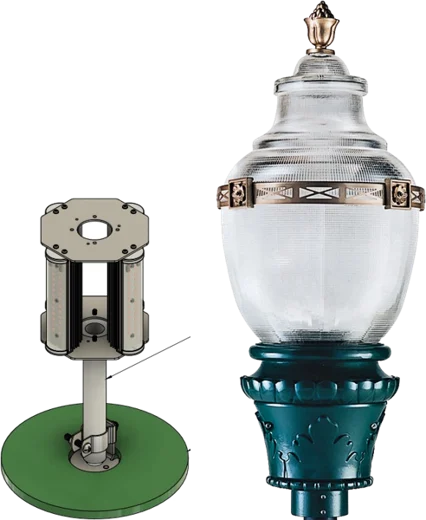

100+ units · mountain resort townHolophane Washington
The 40 lb globe is very hard to remove. HiLumz designed a kit that installs without taking the globe off.

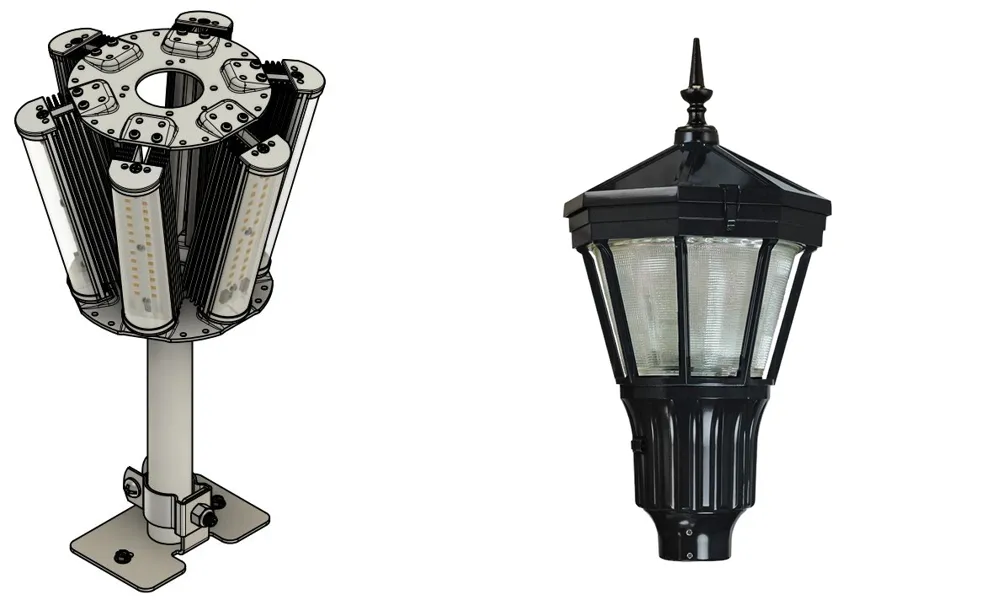

400+ units · college campusHolophane Arlington
The utility rejected the OEM retrofit kit as too hard to install. HiLumz built a 10-minute kit at half the competitor's price; it was approved from an install video.

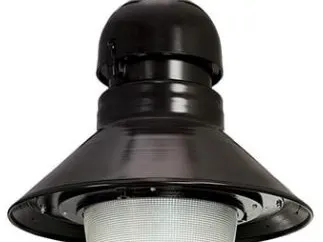

350+ units · Atlanta suburbHolophane Hallbrook
The utility spent 3+ years trying to sell new fixtures the city couldn't afford. The HiLumz retrofit came in 80% below the competitor.

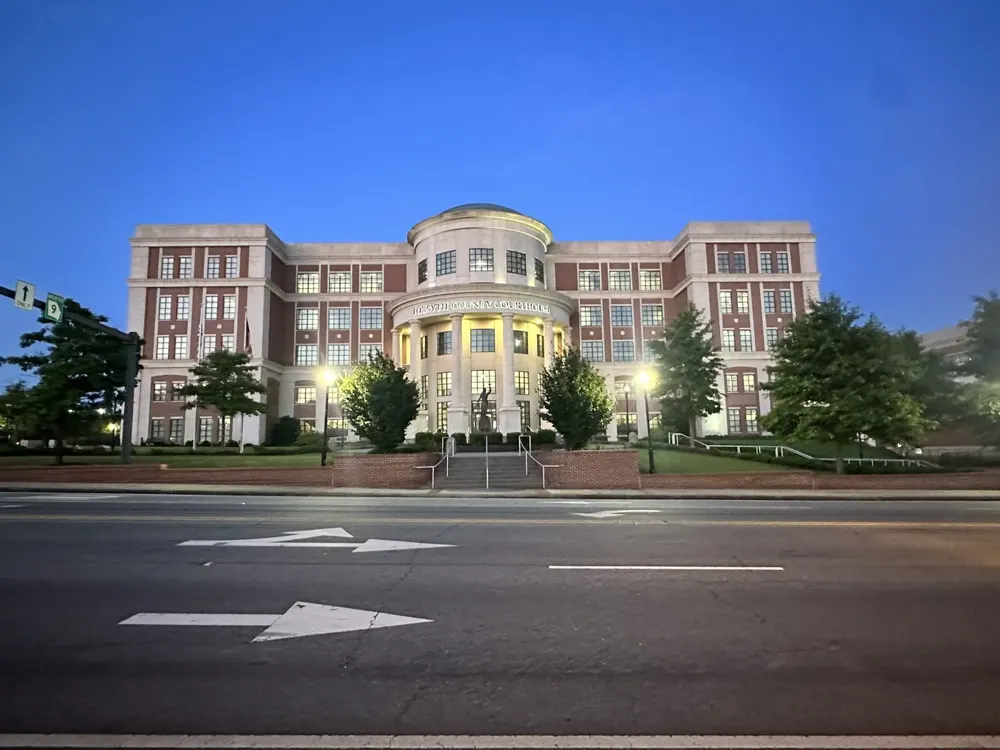

400+ lights · City of Cumming, GAHolophane GranVille
Specialty plug-and-play kit, about 10 minutes per light, with wireless DALI controls enabled.

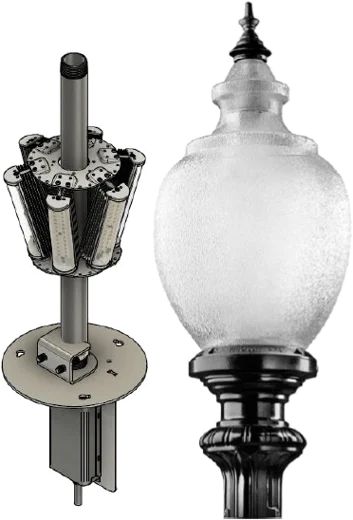

Cobb County EMCKing Luminaire K118
LED-to-LED upgrade: a new HiLumz light system inside existing LED fixtures.

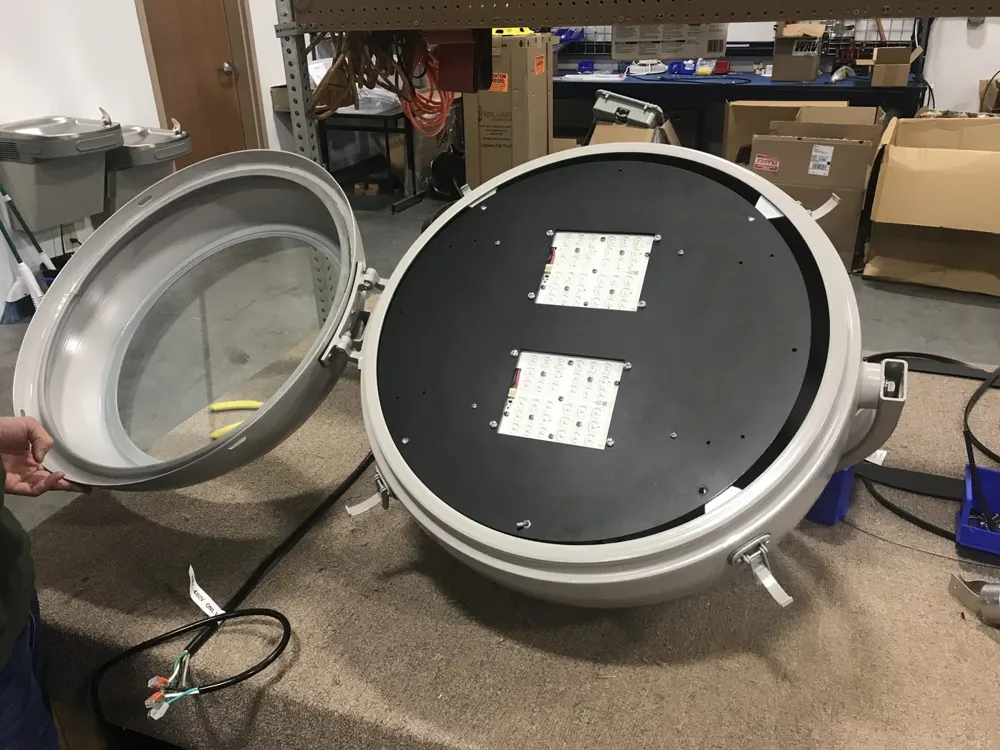

Minneapolis–St. Paul AirportSterner roadway
480 V, 3000K, 42,000-lumen kit with a T2 roadway optic.

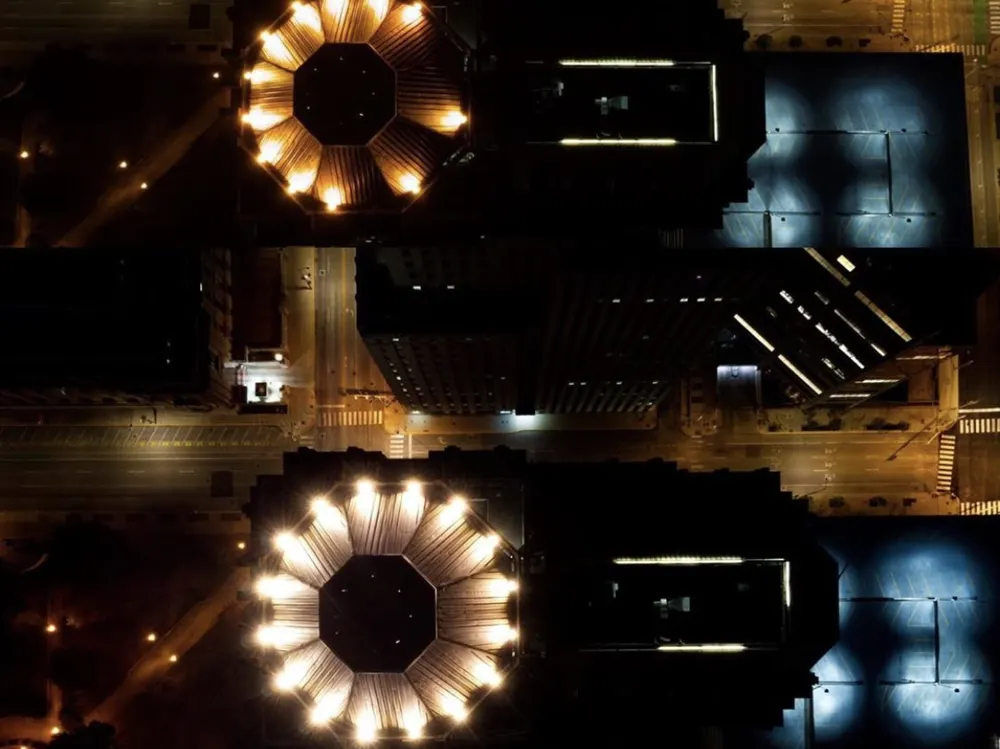

Indianapolis, INDMZ150 with narrowing optics
60° narrowing optic at 4000K.

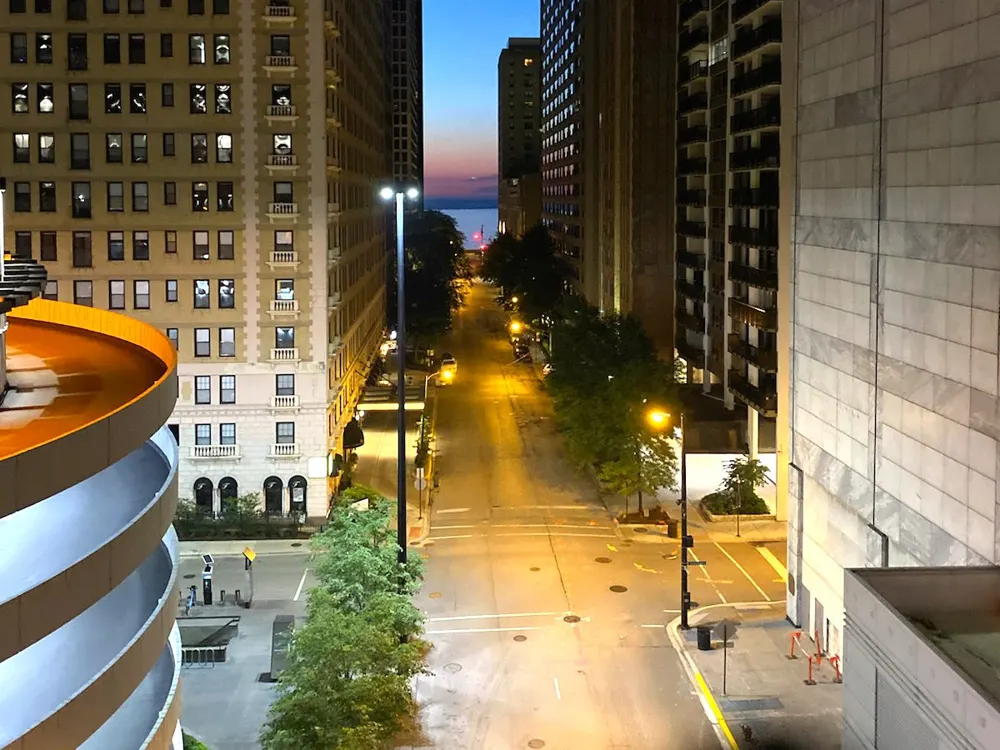

Chicago, ILHancock Building
IP67 light modules on custom plates with narrowing optics.

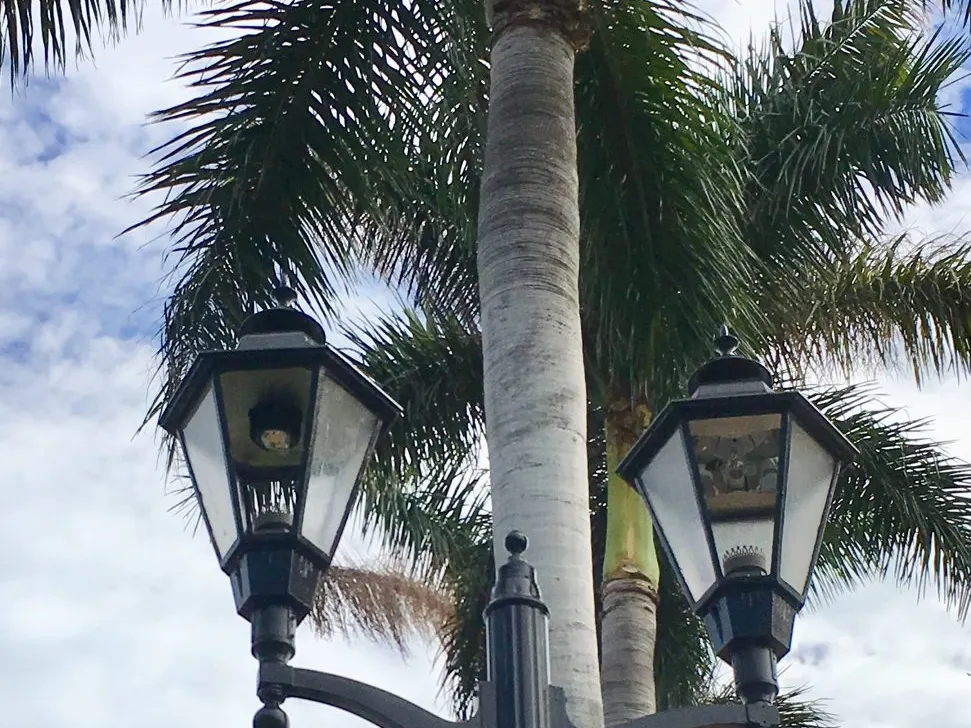

Custom mountingSternberg cast iron
T3 forward-throw lens replacing 175 W metal halide.

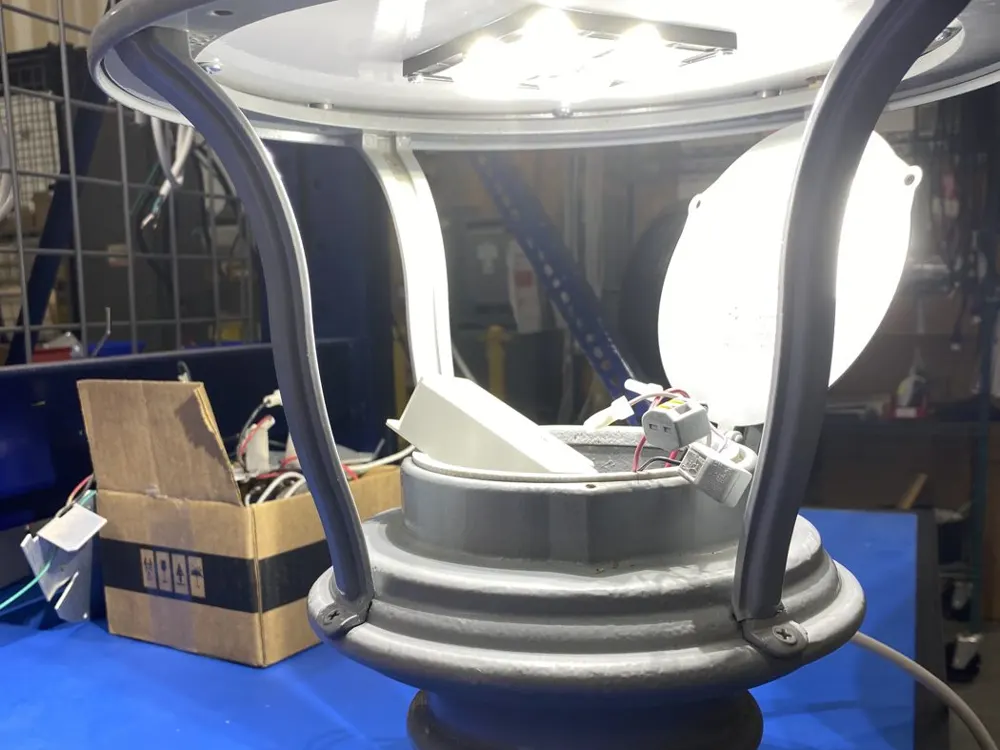

San Francisco college campusDecorative post top
DM30 IP67 light module on a custom plate.

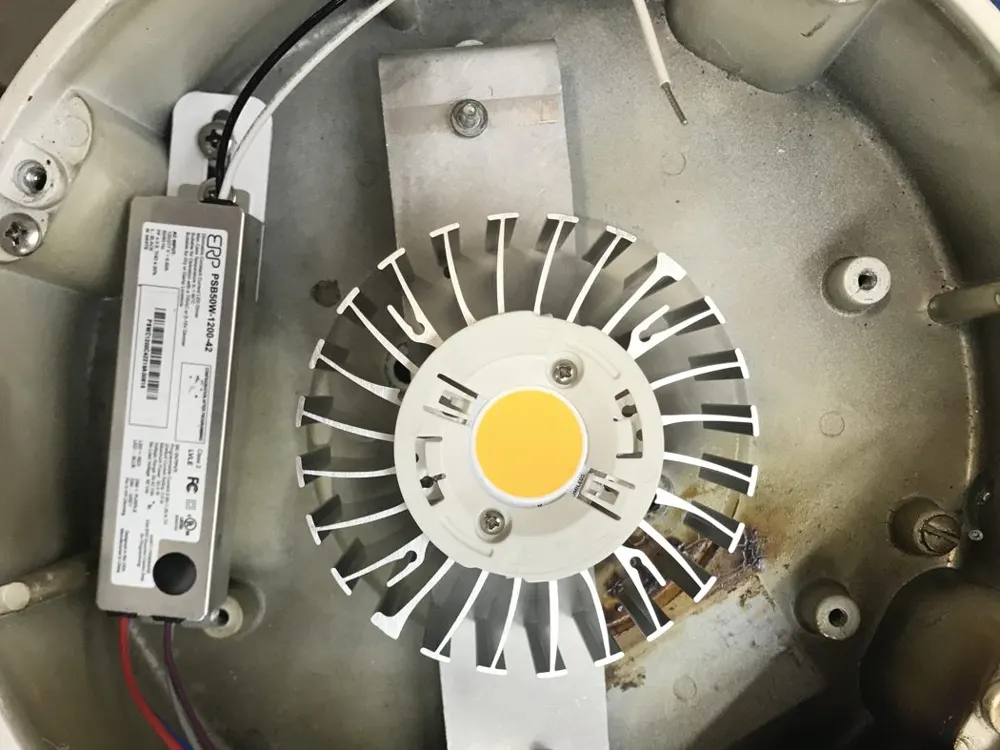

San Francisco International AirportGlobal Tech canopy
30 W replacement with a Zorya lens.

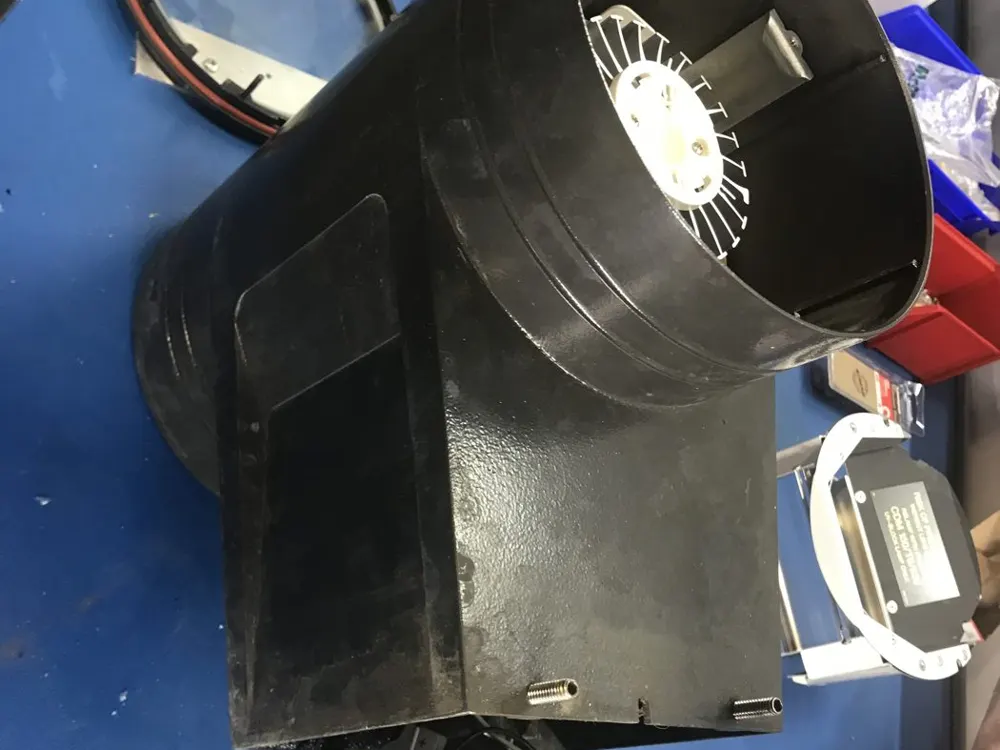

Hospital in VirginiaKIM wall sconce
General retrofits, including KIM wall sconces.

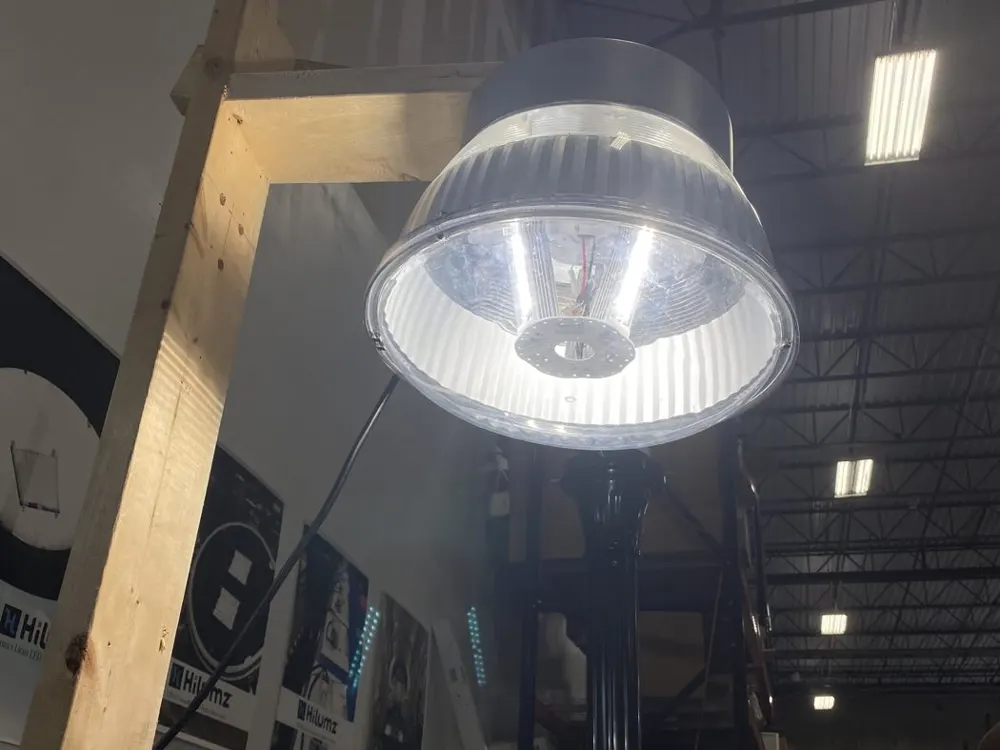

Induction to LEDParking garage
Induction fixtures upgraded to LED.
Arizona DOTTunnel fixtures
About 3,500 tunnel fixtures converted, each in under 4 minutes.
Chicago O'HareGate apron lights
900+ fixtures with a one-person install system.
Nationwide buildingsUp/down wall sconces
500+ KIM-style sconces converted with a one-way/two-way bracket kit.

Also: 2,000+ decorative post tops for Oklahoma Gas & Electric and post tops and pendants at the University of Denver.

03Decorative fixtures we've retrofittedSheet 03 of 07

Tell us your fixture model. We've likely already designed the kit.

Pre-designed LED conversion kits for the most common decorative fixtures. Each kit is engineered to its fixture: exact fit, light distribution matched to the original, installed in the field with OEM performance.

Holophane®

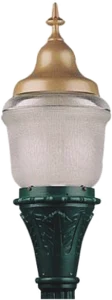

GranVille ClassicHolophane LED kit

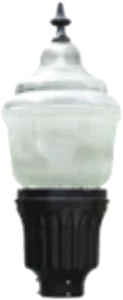

GranVille PremiereHolophane LED kit

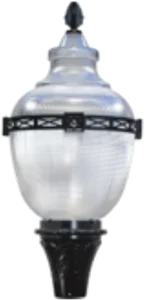

Washington (glass)Holophane LED kit

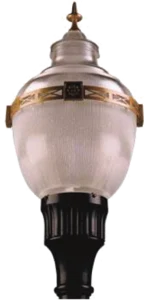

Washington (acrylic)Holophane LED kit

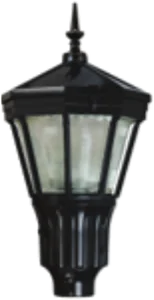

ArlingtonHolophane LED kit

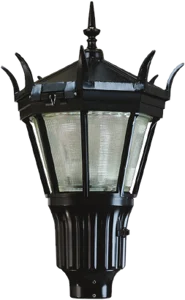

JeffersonHolophane LED kit

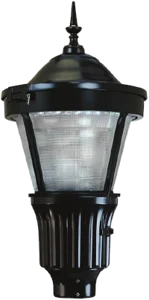

TaftHolophane LED kit

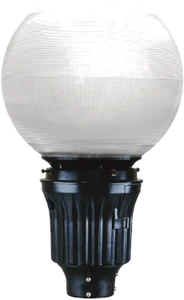

PrismaSphereHolophane LED kit

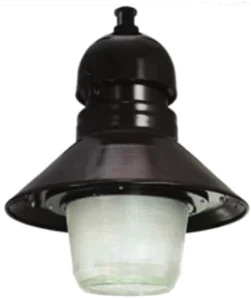

HallbrookHolophane LED kit

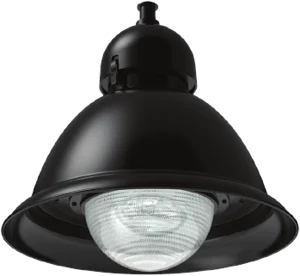

BernHolophane LED kit

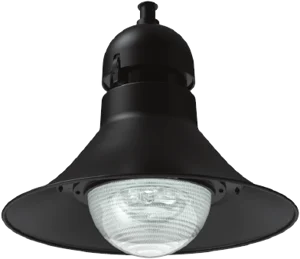

PragueHolophane LED kit

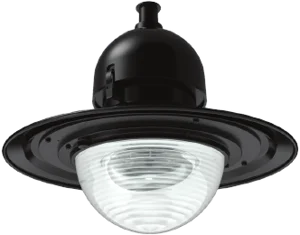

LyonHolophane LED kit

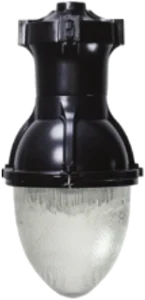

EsplanadeHolophane LED kit

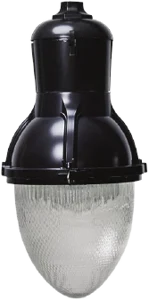

MemphisHolophane LED kit

Cooper®

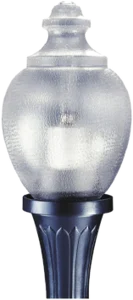

ANE AcornCooper LED kit

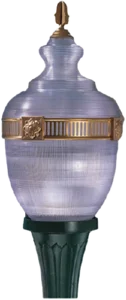

WestminsterCooper LED kit

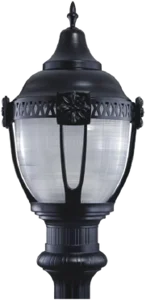

Generation AcornCooper LED kit

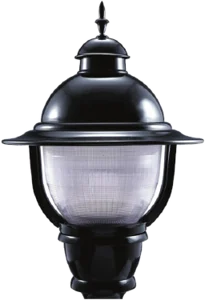

Generation ArchitecturalCooper LED kit

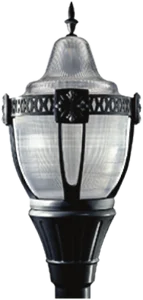

Generation ClassicalCooper LED kit

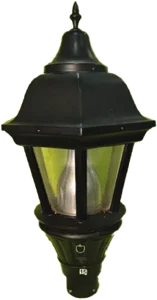

CascadeCooper LED kit

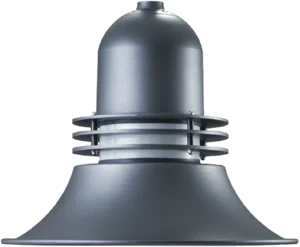

EpicCooper LED kit

Lumec® (Signify)

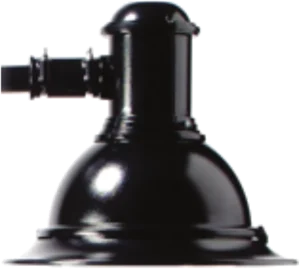

DomusLumec LED kit

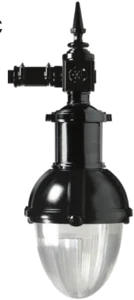

RenaissanceLumec LED kit

King Luminaire®

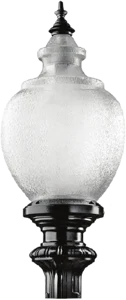

K118 WashingtonKing Luminaire LED kit

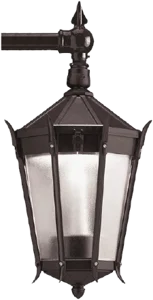

Tudor / ClevelandKing Luminaire LED kit

GE / Current®

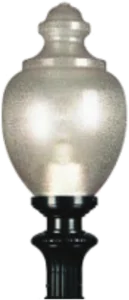

TorchGE LED kit

Sternberg®

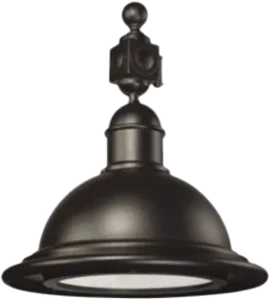

OmegaSternberg LED kit

And more

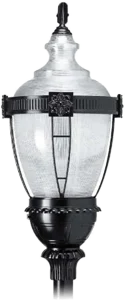

Hadco®LED kit

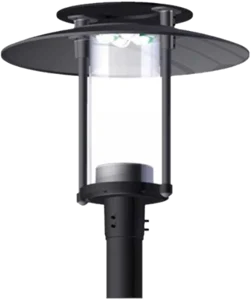

Selux®LED kit

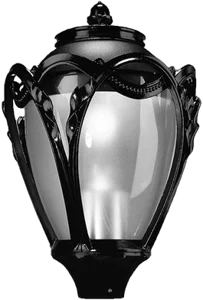

SentryLED kit

Not listed? We also build kits for Holophane GranVille GlassWerks and Lumec teardrops and downlights, and we design custom kits for nearly any fixture.
