Solar Canopy

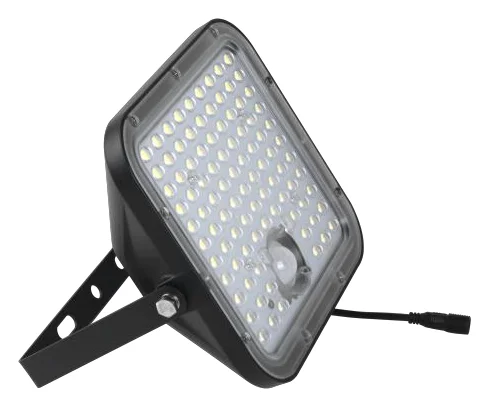

Solar LED flood light with a separate adjustable solar panel: 30 W, 4,800 lm, PIR motion sensor, remote control and up to 60 hours of lighting.
This solar LED flood light is for canopies, building walls, yards and parking areas without power. The lamp and the solar panel mount separately and connect with a 5 m (16 ft) cable, so the panel can sit in full sun while the light goes where it's needed.
A 30 W, 4,800-lumen LED module with a 120° × 60° beam runs from a 12.5 W mono-crystalline panel and a replaceable 38.4 Wh LiFePO4 battery. A full charge takes 4–6 hours of strong sun and gives up to 60 hours of lighting.
A PIR motion sensor and the included remote control set the working mode: hold a set brightness for a set number of hours and then switch to sensor mode, or run in sensor mode all night (full brightness on motion, 5% after 60 seconds without motion). The panel tilts through 270°, the lamp bracket turns 360°, and the light is rated IP65.
- 0130 W, 4,800 lm, 160 lm/W
- 02Separate solar panel on a 5 m cable
- 03PIR motion sensor and remote control
- 04Up to 60 hours of lighting on a full charge
- 05Replaceable LiFePO4 battery, 2,000 cycles
- 06Panel tilts 270°, lamp turns 360°
- 07IP65 rated
- Output
- 4,800 lm
- Wattage
- 30 W
- Applications
- Canopy; Building Exterior; Wall Mount; Parking Lot
- Environment
- Outdoor
- CCT
- 3000K, 4000K or 6000K (set at order)
- Input voltage
- Solar (6.4 V LiFePO4 battery, 12.5 W panel)
- Efficacy
- 160 lm/W
- Warranty
- 3 years
- Ratings
- IP65
| Document | Type | |
|---|---|---|
| Solar Canopy Spec Sheet | Spec sheet | PDF ↓ |
| IES photometric files | Photometry | On request |
